Our kit Uno RFID Kit V1 (now discontinued) was originally designed to give designers and engineers a generalist toolkit for testing ideas and building prototypes.  We presented our kit to hundreds of high school and university students and worked with them to study how they interacted, what they could create, and to gather feedback about the kit.  After studying their feedback, we went away and redesigned the kit to make it even more awesome!

The Uno RFID Kit V2 is a great all-rounder kit for new tinkerers and experienced Makers alike.  It offers much than the Uno RFID Kit V1, including:

  • Multiple breadboards for doing several projects (allows for design flexibility instead of just a single breadboard),
  • A variety of new sensors (optical and magnetic),
  • I2C LCD controller,
  • A variety of wire connectors, and
  • Tons more LEDs to increase the versatility and applications for prototyping with this one kit!

For added functionality we suggest combining this with add-on modules, including our MP3 Player Add-on Module, or Internet of Things (IoT) Add-on Module.

This kit is also used in conjunction with UTS Mechatronics Engineering and UTS Product Design courses.

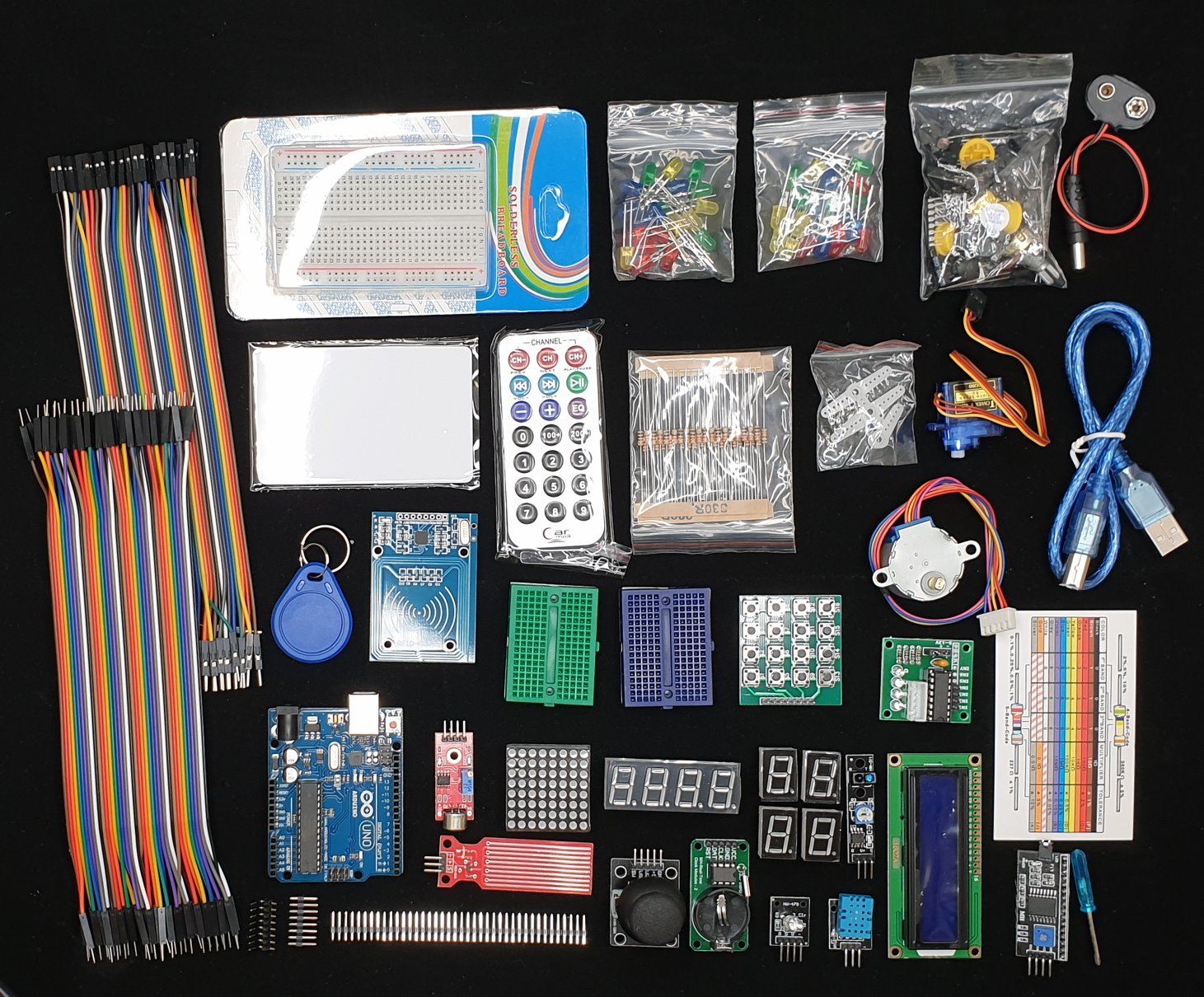

This kit contains the following components:

  • 1x 400-pin breadboard
  • 2x 170-pin breadboards
  • 16x2 LCD Display (LCD1602)
  • 8-Bit I/O Expander chip – PCF8574 (Can be used to control of the 16x2 LCD display over I2C)
  • RFID Card reading module (MFRC522), with RFID Card and key chain,
  • Joystick module (KY-023)
  • 4x4 button board module
  • RTC module (DS1302)
  • Water level sensor
  • Temperature and Humidity sensor module (DHT11) (KY-015)
  • RGB LED module
  • Stepper motor (28BYJ-48), with motor driver module (ULN2003)
  • 30x jumper wire pack (Male-to-male)
  • 30x DuPont M-F cables
  • Microphone module
  • IR Remote
  • 10K potentiometer
  • 1x Four-Digit 7-segment display with decimal point
  • 4x Single-Digit 7-segment displays with decimal point
  • 8x8 LED matrix display
  • 9G servo motor (TowerPro SG90)
  • Buzzers
    • 1x ZLFY unsealed buzzer - datasheet
    • 1x potted sealed buzzer (washable, but keep sticker on when washing)
  • 2x tilt switch, ball type (AETHDX SW-520D) - datasheet
  • 3x photoresistors
  • 4x switches with coloured plastic caps (OMRON B3F-4055)
  • 9V battery connector with DC Barrel Jack
  • LED Pack, containing:
    • 10x 5mm Red LEDs,
    • 10x 5mm Yellow LEDs,
    • 10x 5mm Green LEDs,
    • 10x 5mm Blue LEDs, and
    • 1x RGB LED.
  • Resistor Pack, containing:
    • 10x 220R 5% tolerance,
    • 10x 330R 5% tolerance,
    • 10x 1kR, 5% tolerance, and
    • 10x 10kR, 5% tolerance.
  • 5mm High-speed IR Photodiode/Flame Sensor (BPV10NF)
  • IR receiver VISHAY TSOP382
  • 8-Pin Shift Register (74HC595) - datasheet
  • Temperature Sensor (LM35DZ) - datasheet
  • Uno R3 (Arduino-compatible) board with USB Type A to Type B cable
  • 1x 40-pin snappable male header
  • 1x Resistor Colour Code reference card
  • 1x Hermetically sealed glass reed switch
  • 2x VISHAY TCST2103 Photointerruptors
  • 1x IR Line Following Module (KY-033)
  • 1x Mini Philips (PH1) Screwdriver (for screwing relay terminals, servo arm and mounts)
